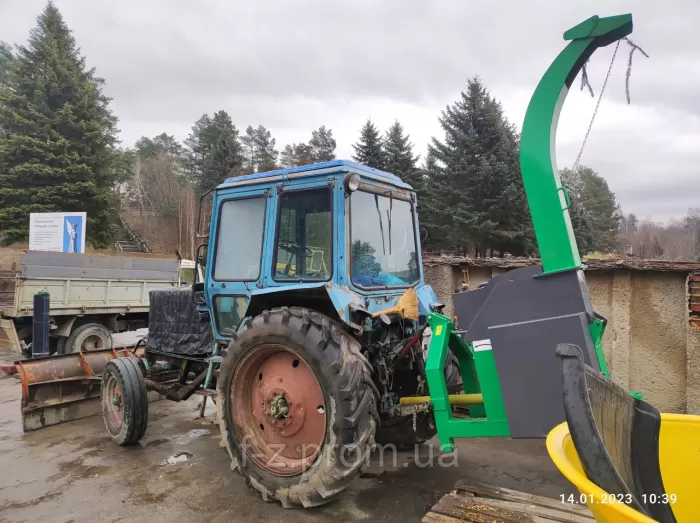

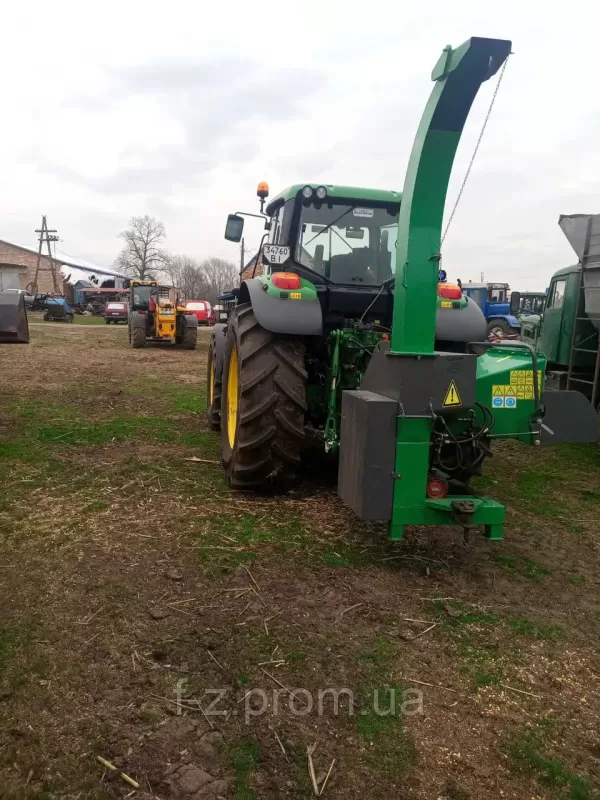

Сhopper RM180T Lateral with hydraulic feed. A tractor corner wood chipper with the possibility of attaching a trailer

Сhopper RM180T lateral with hydraulic feed (tractor corner with the possibility to attach a trailer)

The RM180T chopper is a powerful three-knife rotary chipper, designed for efficient processing of roundwood and large lumpy waste into high-quality chips. Thanks to the possibility of attaching a trailer, this device is ideal for use on a tractor, which greatly facilitates the transportation and processing of materials in large areas.

The main advantages of this shredder include:

High productivity: Up to 4 tons/hour, which allows you to quickly and efficiently process wood of various diameters.

Hydraulic feed: Provides stable and uniform grinding, reducing the load on the tractor.

Flexibility in use: The loading hopper with a horizontal position and the discharge pipe with a rotation angle of 360° allow you to easily adapt the chipper to different working conditions.

Possibility of further processing: The resulting chips can be further crushed to obtain an ideal fraction for granulation or briquetting.

Technical characteristics:

Stationary type

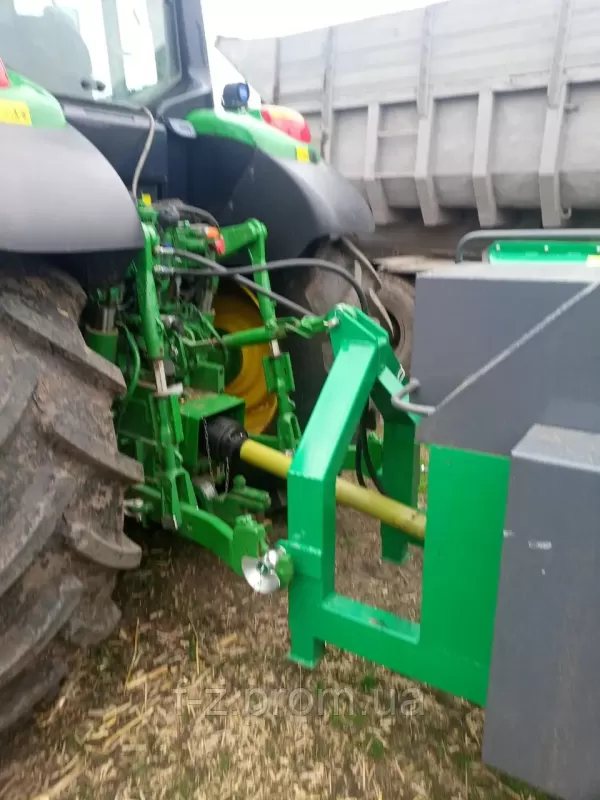

Mechanism drive from tractor power take-off shaft

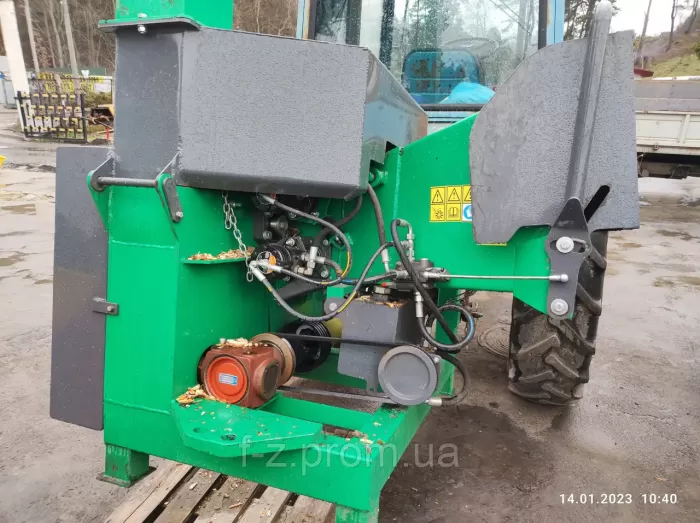

The supply is its own hydraulic system
The diameter of the knife disk is 875 mm
The number of revolutions of the knife disk is 1000 rpm
Productivity 2-4 tons/hour (up to 16m3)

Tree dimensions, diameter: 180 mm
width 235 mm
length: 200 and more

Sizes of the chip fraction at the output length: 15-40 mm
width 10-20 mm
thickness: 5-10 mm

The position of the loading hopper is horizontal
Swing. the height of the chip ejection is 3.0 meters
The angle of rotation of the exhaust pipe is 360°
The volume of oil in the hydraulic system is 9 liters
Oil pressure in the hydraulic system is 140 bar
Hydraulic oil MGE 46V

Overall dimensions length: 2063 mm
height: 2426 mm
width: 1250 mm
Weight: 825 kg

The RM180T chopper from F-Z Ukraine will become a reliable assistant in your farm, ensuring high efficiency and quality of work. If necessary, the equipment can be manufactured according to your individual requirements.
