Wood shredder, wood chopper, crusher 2 in 1

Wood chopper, DK Wood Shredder (2-in-1 Shredder)

The company F-Z Ukraine (F-Z Ukraine) for the first time on the market offers a unique crushing complex of the DK series, which allows you to effectively shred large wood waste (branches, cuttings, boards up to 225 mm wide, logs up to Ø220 mm) into a fine fraction of 2-5 mm ( saws). This fraction is ideal for further granulation, briquetting, use as fuel in boilers or for the production of chipboards, pallet bars and more.

Main advantages:

• Versatility: One device replaces two crushers and a hopper, which allows significant savings in costs and time.
• Savings: Less energy costs, because you get fine sawdust in one pass.
• High performance: Provides stable and efficient work with any type of wood waste.

This DK chipper is the perfect solution for businesses looking for a reliable and economical way to process wood.

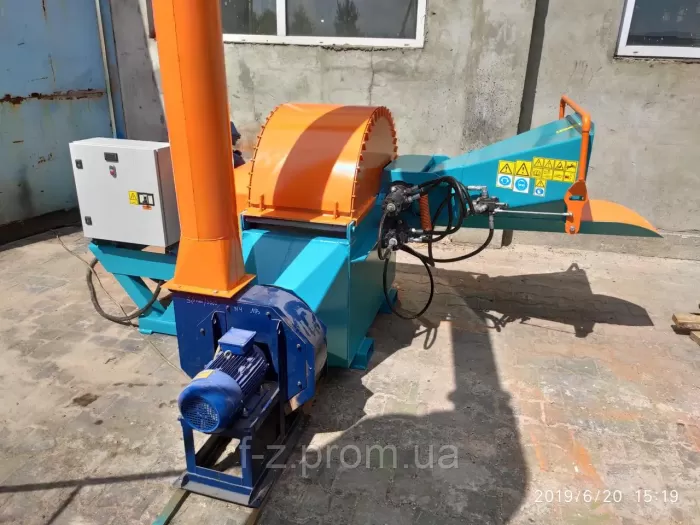

Technical characteristics of the crushing complex type DK 55 for crushing wood waste:

Type: Stationary

Drive: electric motor — 45-55 kWx1000 rpm

Disc:

- 3 knives and 1 counter knife

- diameter 800 mm

- thickness 40 mm

- rotation frequency of 1000 rpm

Hydraulic system:

- the loading hopper is equipped with two retracting rollers with teeth: width 230 mm x 280 mm.

- the rollers have a separate hydraulic motor and stress shock

- the system is equipped with an oil flow regulator with a pressure compensator, which regulates the feed rate of raw materials.

Drum:

- 84 hammers

- sieve 1 pc. (sieve shoes 5 mm. — cell diameter to order)

- counter knife 22 pcs.

Automatics:

- control panel with automatic regulator

Unloading of raw materials:

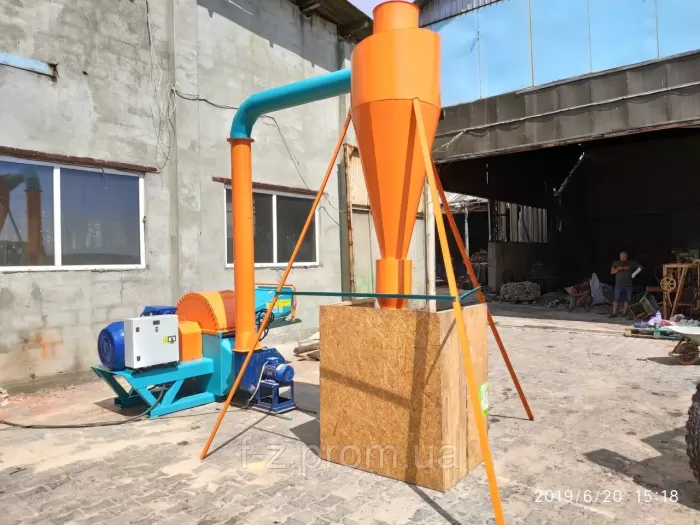

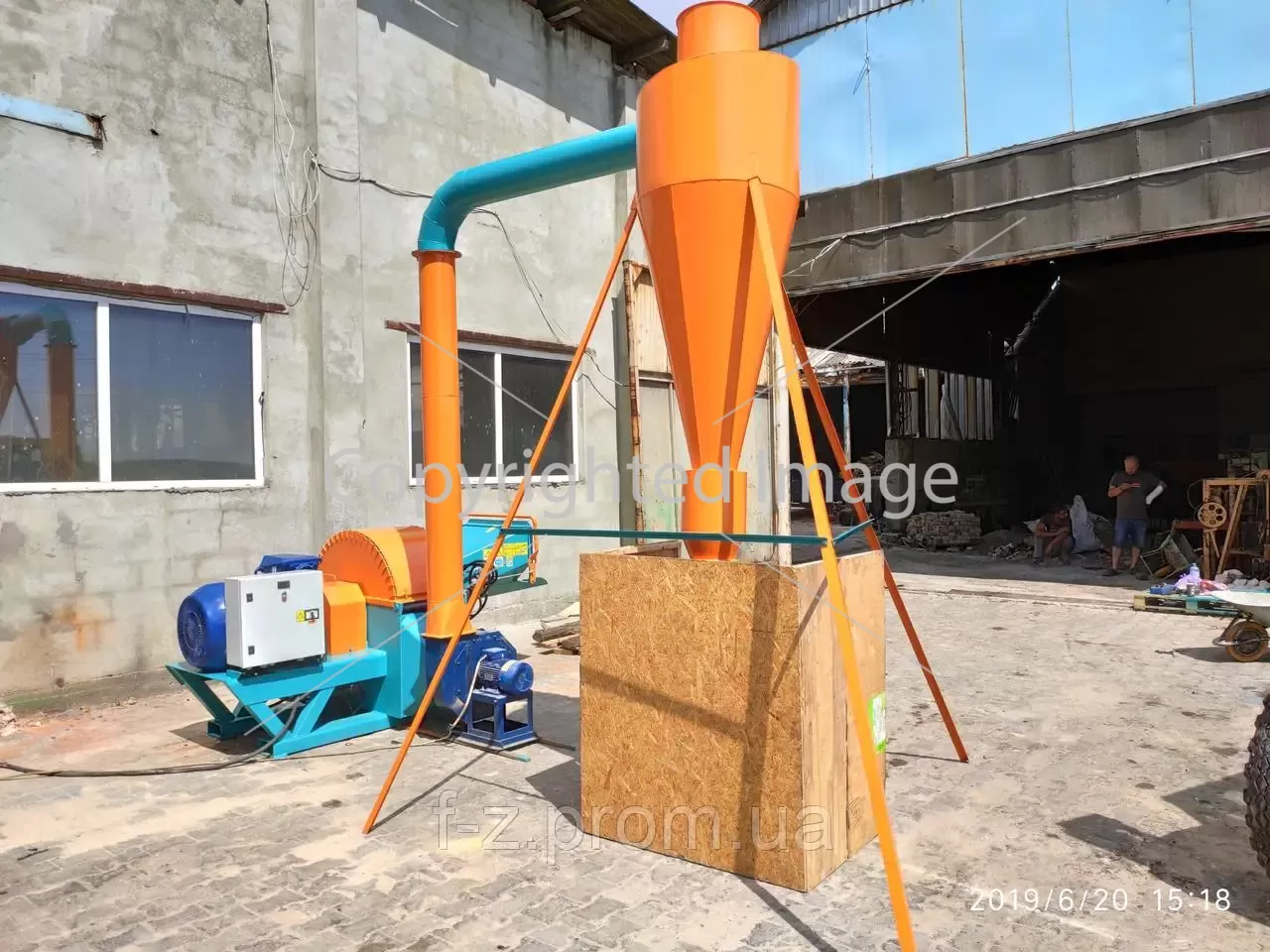

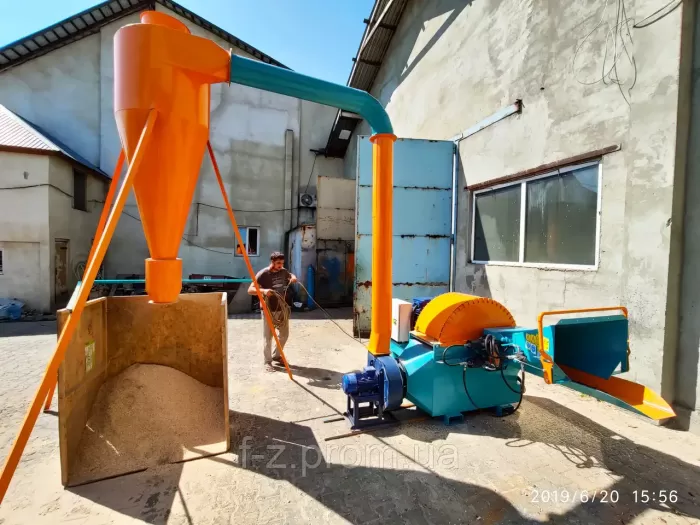

- pneumatic through a cyclone: ​​5.5 kW x 3000 rpm,

Size:

- length 2450 mm

- height 1400 mm

- width 1300 mm

Weight: 1400 kg.

Sawdust fraction at the output: 2-5 mm.

Productivity 1000 — 1500 kg. / time at humidity up to 60%
